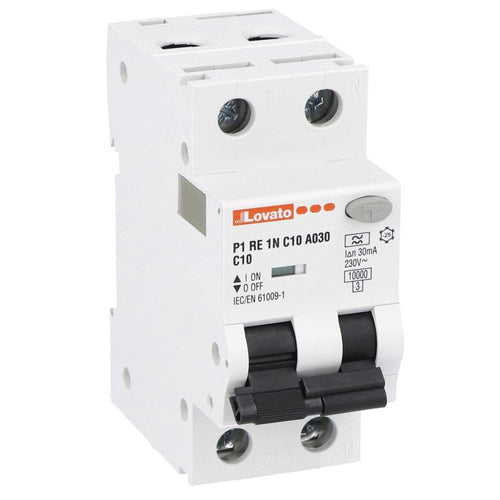

Lovato P1RE1NC10A030, Residual Current Operated Circuit Breaker with Overcurrent Protection, Single Pole+Neutral (1P+N), 10kA, Type A, 2 Modules, 10A, 30mA
Regular price
$212.43
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
These devices both detect and trip in the event of residual current and protect circuits in the case of short circuits and overcurrent. From a practical point of view, they integrate both functions of MCB and RCCB.
They have a C-type trip characteristic (instantaneous trip 5-10 times In) and are used for inductive loads (mixed loads, resistive and inductive with low inrush current).
| Type of Product | Residual current operated circuit breakers with overcurrent protection |
| Number of DIN Modules | 2 |
| Number of Poles | 1P+N |
| Tripping Curve | C |
| Residual Operation Characteristic | A |
| Rated Residual Current I∆n [mA] | 30 |
| Rated Current In [A] | 10 |
| Compliance | IEC |
| Rated Insulation Voltage Ui | 400V |
| Rated Operational Voltage AC (IEC) | 230 VAC |
| Short Circuit Rating (IEC) | 10kA |
| Fixing | 35mm DIN rail |
| Frontal IP Degree | IP20 |
| Operating Temperature | -25°C - +60°C |
| HS Code | 85363010 |
| Certifications | TÜV-SUD, EAC |
| Conformity | IEC/EN/BS 61009-1 |
