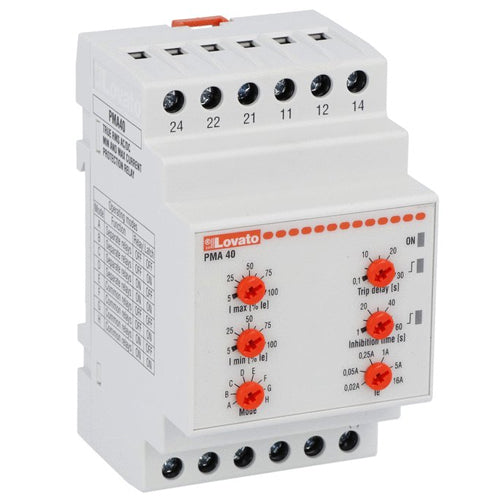

Lovato PMA40240, Current Monitoring Relay for Single and Three-Phase System, AC/DC Minimum or Maximum Current Control, Delayed Trip, Automatic or Manual Reset, Auxiliary Power Supply 24...240VAC/DC, 0.02-0.05-0.25-1-5-16A
Regular price
$556.20
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Current monitoring relays |
| Type of System | Single-phase and three-phase |
| Number of Relay Outputs | 2 |
| Rated Supply Voltage | 24...240VAC/DC |
| Rated Current Ie [A] | 0.02 - 0.05 - 0.25 - 1 - 5 - 16 |
| Programming Mode | Potentiometers |
| Contact Arrangement | 2 x 1 changeover SPDT each |
| Type of Reset |
Automatic or manual
|
| Indication | 1 green LED for npower on /inhibition and 2 red LEDs formax/min tripping |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 53.5 x 104.7 x64.9 mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14. |
