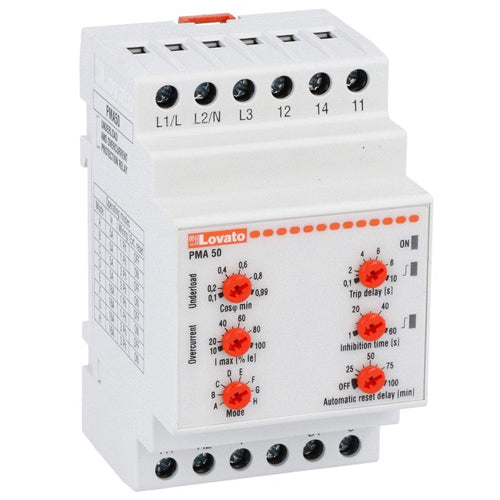

Lovato PMA50A240, Pump Protection Relay for Single and Three-Phase System, Maximum AC Current and Minimum COSΦ, Phase Loss and Incorrect Phase Sequence, Auxiliary Power Supply 220...240VAC, 5A or 16A
Regular price
$533.92
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Pump protection relays |
| Type of System | Single-phase and three-phase |
| Number of Relay Outputs | 1 |
| Rated Supply Voltage | 220...240VAC |
| Rated Current Ie [A] | 5 or 16 |
| Programming Mode | Potentiometers |
| Contact Arrangement | 1 changeover contact C/O - SPDT |
| Type of Reset |
Automatic or manual
|
| Indication | 1 green LED for power on / inhibition and 2 red LED for tripping |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 53.5 x 104.7 x64.9 mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14. |
