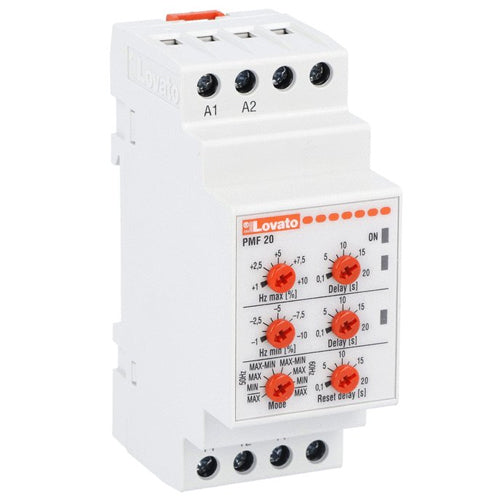

Lovato PMF20A415, Frequency Monitoring Relay for Single and Three-Phase System, Minimum and Maximum Frequency, Delayed Trip, Automatic Reset, 380...415VAC 50/60Hz
Regular price
$840.97
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Frequency monitoring relays |
| Type of System | Single and three-phase |
| Number of Relay Outputs | 1 |
| Rated Supply Voltage | Self powered |
| Programming Mode | Potentiometers |
| Rated Frequency | 50 or 60 Hz selectable |
| Rated Voltage to Control (Ue) | 380...415VAC |
| Type of Reset | Automatic |
| Contact Arrangement |
1 changeover SPDT
|
| Terminals Type |
Screw
|
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 35.8 x 104.7 x 64.9 mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14. |
