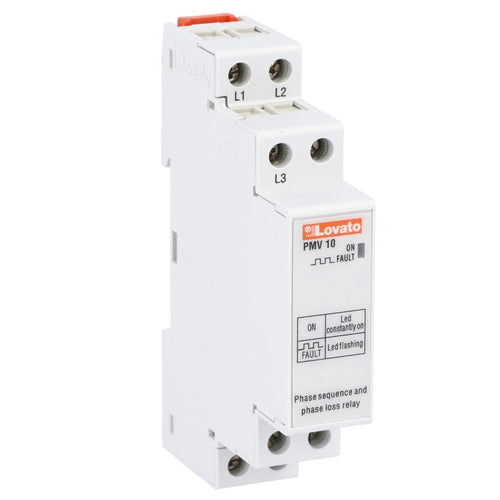

Lovato PMV10A440, Voltage Monitoring Relay for Three-Phase System, Without Neutral, Phase Loss and Incorrect Phase Sequence, Instantaneous Trip, 1 Module Housing, 208...480VAC 50/60Hz
Regular price
$260.75
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Voltage monitoring relays |
| Type of System | Three-phase without neutral |
| Number of Relay Outputs | 1 |
| Rated Supply Voltage | Self powered |
| Rated Frequency | 50/60Hz ±5% |
| Rated Voltage to Control (Ue) | 208...480VAC |
| Type of Reset | Automatic |
| Contact Arrangement | 1 changeover SPDT |
| Indication | 1 green LED for power on and tripping |
| Terminals Type | Screw |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 17.5 x 104.7 x 63 mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14. |
