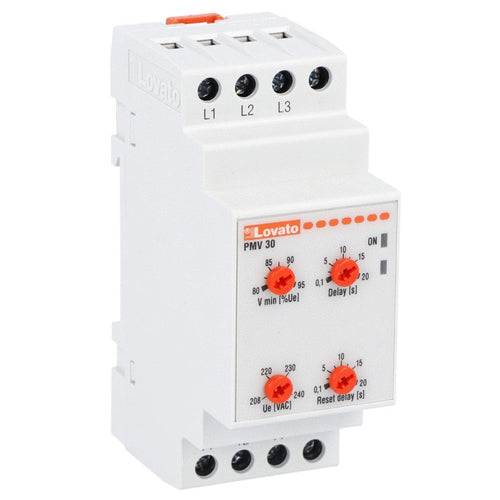

Lovato PMV30A240, Voltage Monitoring Relay for Three-Phase System, Without Neutral, Minimum AC Voltage, Delayed Trip, Phase Loss and Incorrect Phase Sequence, Instantaneous Trip, 208...240VAC 50/60Hz
Regular price
$384.94
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Voltage monitoring relays |
| Type of System | Three-phase without neutral |
| Number of Relay Outputs | 1 |
| Rated Supply Voltage | Self powered |
| Rated Frequency | 50/60Hz ±5% |
| Rated Voltage to Control (Ue) | 208...240VAC |
| Type of Reset | Automatic |
| Contact Arrangement | 1 changeover SPDT |
| Indication | 1 green LED for power on and tripping and 1 red LED for tripping |
| Terminals Type | Screw |
| Operating Temperature | -20°C - +60°C |
| Housing Material | Self-extinguishing polyamide |
| IEC Degree of Protection | IP40 on front / IP20 on terminals |
| Dimensions (W x H x D) | 35.8 x 104.7 x 64.9 mm |
| HS Code | 85364900 |
| Certifications | EAC, cULus |
| Compliance | IEC/EN 60255-5 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL508 CSA C22.2 n° 14. |
