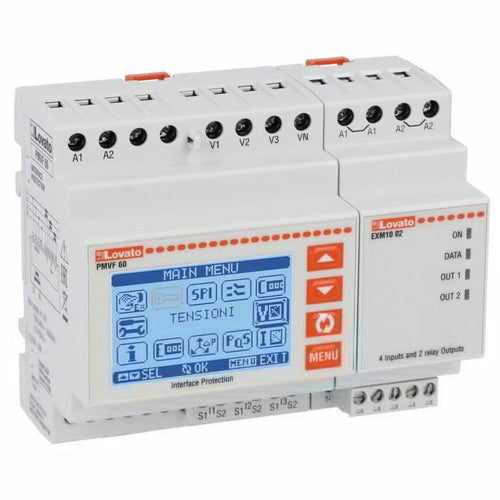

Lovato PMVF60, Interface Protection Unit Compliant with SHAMS DUBAI DRRG (DEWA), SEC (Saudi Electricity Company), With or Without Neutral, Low and Medium Voltage, Min and Max Voltage and Frequency Dual Threshold Protection, R.O.C.O.F and Vector Shift
Regular price
$2,601.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Interface protection system unit |
| Type of System | Three-phase with/without neutral |
| Number of Relay Outputs | 2 |
| Rated Supply Voltage | 100...240VAC; 110...250VDC |
| Rated Current Ie [A] | CT /5A /1A |
| Operating Voltage Range | 85…264VAC / 93.5…300VDC |
| Rated Frequency | 50/60Hz |
| Contact Arrangement | 1 changeover contact/SPDT each |
| Terminals Type | Screw - removable |
| Material | Polyamide |
| Mounting | Modular 6U |
| IEC Degree of Protection | IP40 on front / IP20 at terminals |
| Dimensions (W x H x D) | 108 x 105.4 x 63mm |
| HS Code | 85364900 |
| Certifications |
SEC (Saudi Electricity Company) TECHNICAL STANDARD
SHAMS DUBAI - DRRG STARDARDS VERSION 2.0 |
| Compliance |
IEC/EN 60255-26 IEC/EN 60255-27 |
