Home » Lovato PSL110048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 2.1A, Output Power 100W
Lovato

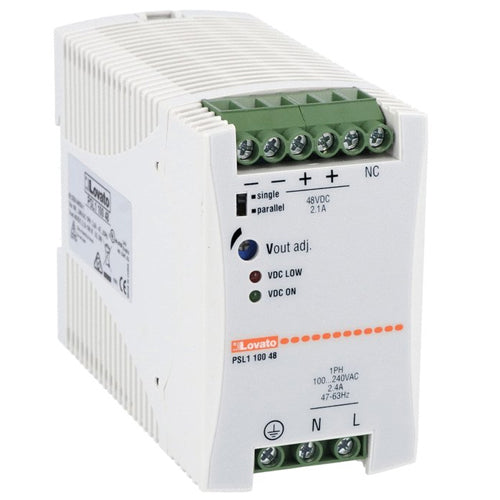

Lovato PSL110048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 2.1A, Output Power 100W

In stock
SKU: PSL110048
$306.26
Output current, power
Rated voltage
Phase

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Switching power supplies
Rated Output Voltage DC [VDC] 48
Rated Output Current [A] 2.1
Rated Output Power [W] 100
Type of Input Single-phase
Rated Supply Voltage AC [VAC] Multivoltage 100...240
Type of Installation DIN rail mounting
Rated Frequency [Hz] 50/60
LED Indicator for Power on  Yes
Terminals Type Screw
Operating Temperature -35°C - +71°C
Material Plastic
IEC Degree of Protection IP20
Dimensions (W x H x D) 54 x 90 x 115mm
HS Code 8504318090
Certifications cULus, EAC, RCM
Conformity IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n°14
