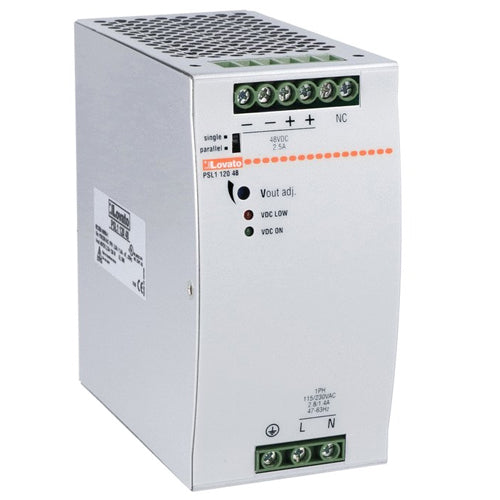

Lovato PSL112048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 2.5A, Output Power 120W
Regular price
$403.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Switching power supplies |
| Rated Output Voltage DC [VDC] | 48 |
| Rated Output Current [A] | 2.5 |
| Rated Output Power [W] | 120 |
| Type of Input | Single-phase |
| Rated Supply Voltage AC [VAC] | Self-configurable 115…230 |
| Type of Installation | DIN rail mounting |
| Rated Frequency [Hz] | 50/60 |
| LED Indicator for Power on | Yes |
| Terminals Type | Screw |
| Operating Temperature | -35°C - +71°C |
| Material | Metal |
| IEC Degree of Protection | IP20 |
| Dimensions (W x H x D) | 64 x 124.5 x 123.6mm |
| HS Code | 8504318090 |
| Certifications | cULus, EAC, RCM |
| Conformity |
IEC/EN/BS 62368-1 IEC/EN/BS 61000-6-2 IEC/EN/BS 61000-6-3 UL 508 CSA C22.2 n°14 |
