Home » Lovato PSL124048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 5A, Output Power 240W
Lovato

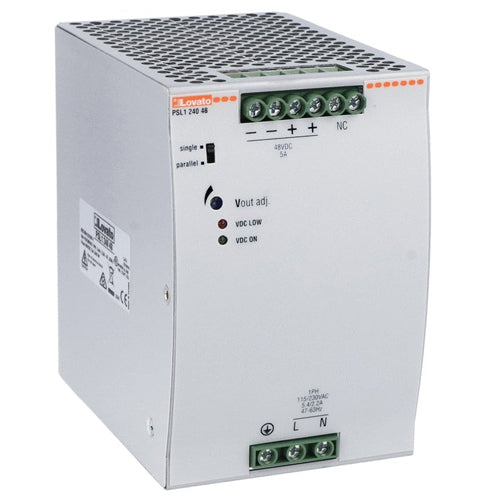

Lovato PSL124048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 5A, Output Power 240W

In stock
SKU: PSL124048
$550.34
Output current, power
Rated voltage
Phase

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Switching power supplies
Rated Output Voltage DC [VDC] 48
Rated Output Current [A] 5
Rated Output Power [W] 240
Type of Input Single-phase
Rated Supply Voltage AC [VAC] Self-configurable 115…230
Type of Installation DIN rail mounting
Rated Frequency [Hz] 50/60
LED Indicator for Power on  Yes
Terminals Type Screw
Operating Temperature -40°C - +71°C
Material Metal
IEC Degree of Protection IP20
Dimensions (W x H x D) 83.5 x 124.5 x 123.6mm
HS Code 8504318090
Certifications cULus, EAC, RCM
Conformity IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n°14
