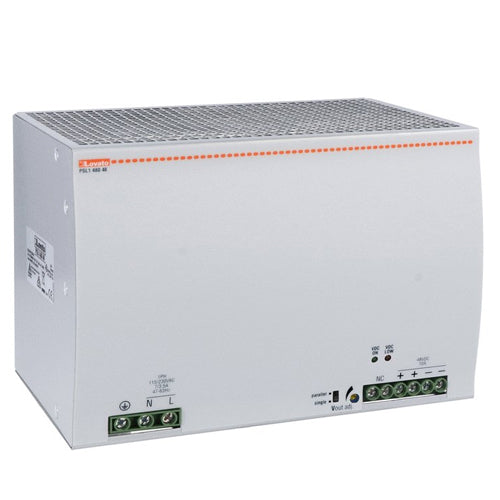

Lovato PSL148048, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Single-Phase, Rated Output Voltage 48VDC, Rated Output Current 10A, Output Power 480W
Regular price
$1,091.31
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Switching power supplies |
| Rated Output Voltage DC [VDC] | 48 |
| Rated Output Current [A] | 10 |
| Rated Output Power [W] | 480 |
| Type of Input | Single-phase |
| Rated Supply Voltage AC [VAC] | Self-configurable 115…230 |
| Type of Installation | DIN rail mounting |
| Rated Frequency [Hz] | 50/60 |
| LED Indicator for Power on | Yes |
| Terminals Type | Screw |
| Operating Temperature | -40°C - +71°C |
| Material | Metal |
| IEC Degree of Protection | IP20 |
| Dimensions (W x H x D) | 175.5 x 124.5 x 123.6 mm |
| HS Code | 8504318090 |
| Certifications | cULus, EAC, RCM |
| Conformity |
IEC/EN/BS 62368-1 IEC/EN/BS 61000-6-2 IEC/EN/BS 61000-6-3 UL 508 CSA C22.2 n°14 |
