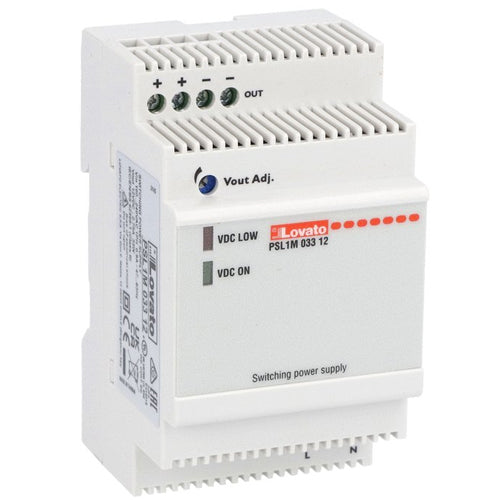

Lovato PSL1M03312, Modular Switching Power Supplies with Maximum Functionality and cULus PSL Series, Single-Phase, Rated Output Voltage 12VDC, Rated Output Current 2.75A, Output Power 33W

In stock
SKU: PSL1M03312
$178.64
Output current, power
Rated voltage
Phase

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Switching power supplies
Rated Output Voltage DC [VDC] 12
Rated Output Current [A] 2.75
Rated Output Power [W] 33
Type of Input Single-phase
Rated Supply Voltage AC [VAC] Multivoltage 100...240
Type of Installation Modular DIN rail mounting
Rated Frequency [Hz] 50/60
LED Indicator for Power on  Yes
Terminals Type Screw
Operating Temperature -40°C - +71°C
Material Plastic
IEC Degree of Protection IP20
Dimensions (W x H x D) 53 x 96 x 56.2mm
HS Code 8504318090
Certifications cULus, EAC, RCM
Conformity IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n°14
