Home » Lovato PSL324024, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Three-Phase, Rated Output Voltage 24VDC, Rated Output Current 10A, Output Power 240W
Lovato

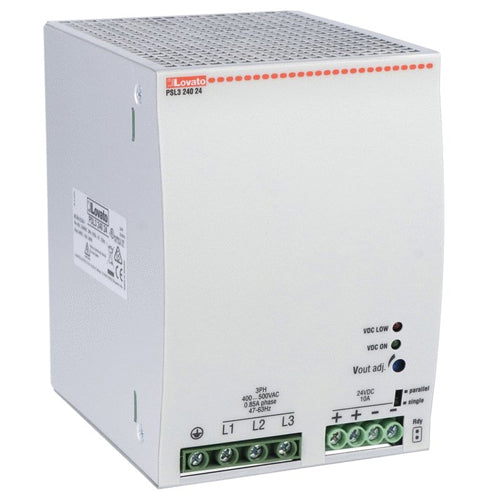

Lovato PSL324024, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Three-Phase, Rated Output Voltage 24VDC, Rated Output Current 10A, Output Power 240W

In stock
SKU: PSL324024
$622.38
Output current, power
Rated voltage
Phase

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Type of Product Switching power supplies
Rated Output Voltage DC [VDC] 24
Rated Output Current [A] 10
Rated Output Power [W] 240
Type of Input Three-phase
Rated Supply Voltage AC [VAC] Multivoltage 400…500
Type of Installation DIN rail mounting
Rated Frequency [Hz] 50/60
LED Indicator for Power on  Yes
Terminals Type Screw
Operating Temperature -40°C - +71°C
Material Metal
IEC Degree of Protection IP20
Dimensions (W x H x D) 89 x 124 x 118.8mm
HS Code 8504318090
Certifications cULus, EAC, RCM
Conformity IEC/EN/BS 62368-1
IEC/EN/BS 61000-6-2
IEC/EN/BS 61000-6-3
UL 508
CSA C22.2 n°14
