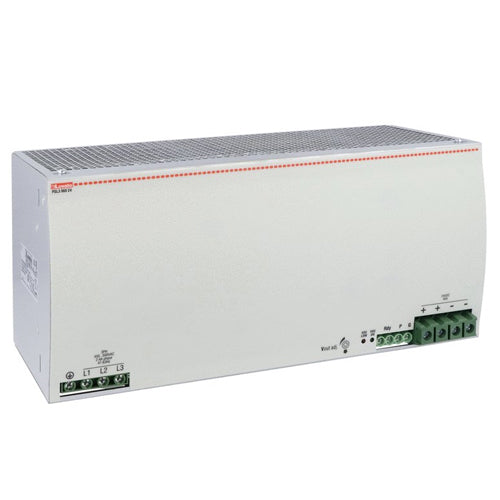

Lovato PSL396024, Din Rail Mount Switching Power Supplies with Maximum Functionality PSL Series, Three-Phase, Rated Output Voltage 24VDC, Rated Output Current 40A, Output Power 960W
Regular price
$1,536.78
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Switching power supplies |
| Rated Output Voltage DC [VDC] | 24 |
| Rated Output Current [A] | 40 |
| Rated Output Power [W] | 960 |
| Type of Input | Three-phase |
| Rated Supply Voltage AC [VAC] | Multivoltage 400…500 |
| Type of Installation | DIN rail mounting |
| Rated Frequency [Hz] | 50/60 |
| LED Indicator for Power on | Yes |
| Terminals Type | Screw |
| Operating Temperature | -40°C - +71°C |
| Material | Metal |
| IEC Degree of Protection | IP20 |
| Dimensions (W x H x D) | 275.8 x 125.9 x 120.3mm |
| HS Code | 8504318090 |
| Certifications | cULus, EAC, RCM |
| Conformity |
IEC/EN/BS 62368-1 IEC/EN/BS 61000-6-2 IEC/EN/BS 61000-6-3 UL 508 CSA C22.2 n°14 |
