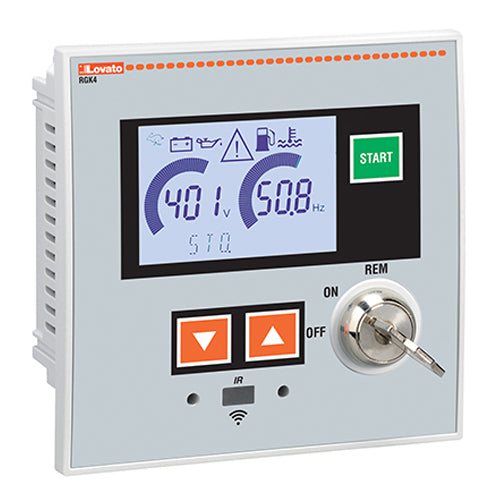

Lovato RGK420SA, Engine Protection Controller, Stand Alone Gen-Set Controller, 12/24VDC, USB/Optical and Wi-Fi Point Programming Port on Front, Icon LCD Display, Built-In 3 Position Key Switch
Regular price
$1,067.86
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Engine and generator controllers |
| Functions | Stand alone |
| Front Dimension [mm] | 110x110 |
| Display | Icon |
| Max I/O Number | 5+5 up to 9+7 with EXP modules |
| Rated Battery Voltage | 12/24VDC |
| Digital Input Type | 5 neg.+ 1 pos. |
| Rated Voltage (Ue) | 100…480VAC |
| Power Supply Range | 7...33VDC |
| Measurement Method | TRMS |
| Rated Current (Ie) | 5A/1A |
| Static Output Type | 5 (SSR) |
| Protection Degree | IP40 |
| Operating Temperature | -30°C - +60 °C |
| HS Code | 85389091 |
| Certifications | EAC, UL Listed for USA and Canada (cULus-File E93601) |
| Conformity | IEC/EN 61010-1 IEC/EN 61010-2-030 IEC/EN 61326-1 UL508 CSA C22.2-N°14 |
