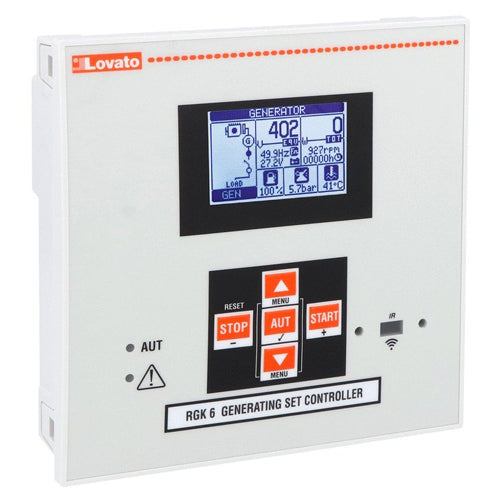

Lovato RGK601, Automatic Mains Failure (AMF) Gen-Set Controller, 12/24VDC, USB/Optical and Wi-Fi Point Programming Port on Front, CANbus Port
Regular price
$1,503.29
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Engine and generator controllers |
| Functions | Automatic mains failure (AMF) |
| Front Dimension [mm] | 144x144 |
| Display | Graphic |
| Max I/O Number | 4+6 |
| Rated Battery Voltage | 12/24VDC |
| Digital Input Type | 4 neg.+ 1 pos. |
| Rated Voltage (Ue) | 100…480VAC |
| Power Supply Range | 7...33VDC |
| Measurement Method | TRMS |
| Rated Current (Ie) | 5A/1A |
| Static Output Type | 6 (SSR) |
| Interface (CANbus) | Yes |
| Protection Degree | IP40, IP65 with optinal gasket seal |
| HS Code | 85389091 |
| Certifications | EAC, UL Listed for USA and Canada (cULus-File E93601) |
| Conformity | IEC/EN 61010-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 CSA C22.2 n° 14 |
