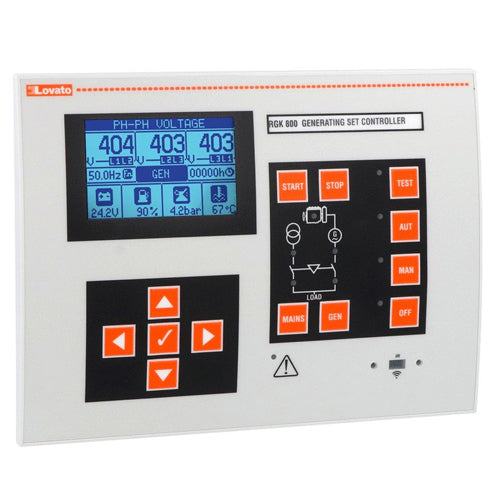

Lovato RGK800, Automatic Mains Failure (AMF) Gen-Set Controller, 12/24VDC, USB/Optical and Wi-Fi Point Programming Port on Front, With RS485 Serial Port, CANbus Port, Expandable with EXP... Modules
Regular price
$2,459.65
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Engine and generator controllers |
| Functions | Automatic mains failure (AMF) |
| Front Dimension [mm] | 240x180 |
| Display | Graphic |
| Max I/O Number | 8+9 up to 14+15 with EXP modules |
| Rated Battery Voltage | 12/24VDC |
| Digital Input Type | 8 neg.+ 1 pos. |
| Rated Voltage (Ue) | 30...600VAC |
| Power Supply Range | 7...33VDC |
| Measurement Method | TRMS |
| Rated Current (Ie) | 5A/1A |
| Static Output Type | 6 (SSR) + 1 (SO) |
| Type of Output Contact | 3 (relay) |
| Interface (CANbus) | Yes |
| Protection Degree | IP65 |
| HS Code | 85389091 |
| Certifications | EAC, UL Listed for USA and Canada (cULus-File E93601) |
| Conformity | IEC/EN 61010-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 CSA C22.2 n° 14 |
