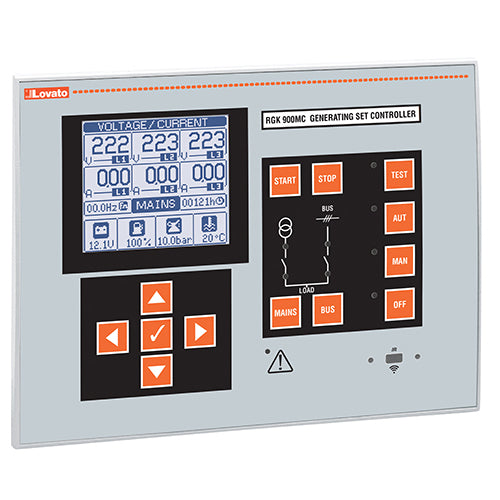

Lovato RGK900MC, Mains-ATS Controller, Control of Mains, Automatic Transfer Switching and Paralleling on Multiple Generators Controlled by RGK900SA, USB/Optical and Wi-Fi Point Programming Port on Front, RS485 Serial Port, Expandable with EXP... Modules
Regular price
$6,270.78
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Engine and generator controllers |
| Functions | Paralleling controllers |
| Front Dimension [mm] | 240x180 |
| Display | Graphic |
| Rated Battery Voltage | 12/24VDC |
| Digital Input Type | 12 neg.+ 1 pos. |
| Rated Voltage (Ue) | 30...600VAC |
| Power Supply Range | 7...36VDC |
| Measurement Method | TRMS |
| Rated Current (Ie) | 5A/1A |
| Static Output Type | 6 (SSR) + 1 (SO) |
| Type of Output Contact | 3 (relay) |
| Protection Degree | IP65 |
| HS Code | 85389091 |
| Certifications | EAC, UL Listed for USA and Canada (cULus-File E93601) |
| Conformity | IEC/EN 61010-1 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 CSA C22.2 n° 14 |
