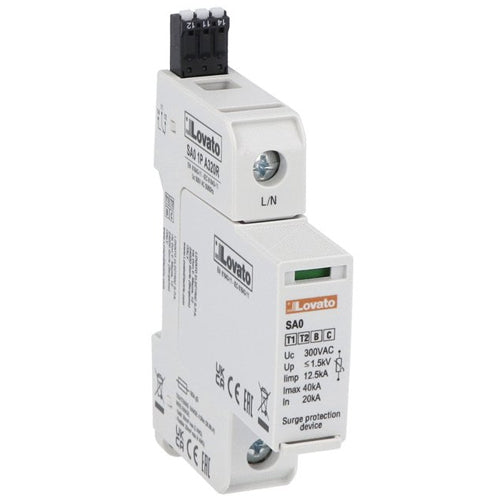

Lovato SA01PA320R, Surge Protection Device with Plug-In Cartridge, Type 1 and 2, IEC Impulse Current Iimp (10/350µs) 12.5kA Per Pole, 1 Pole, Relay Output, 1 DIN Module, With Remote Contact
Regular price
$582.13
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Surge protection device |
| Type / Class | 1, 2 |
| Number of poles | 1P |
| Iimp [kA] | 12.5 |
| In [kA] | 20 |
| Short Circuit Rated Current Isccr [kA] | 50 |
| Type of Mounting | Din rail |
| Number of DIN Modules | 1 |
| Relay Output | Yes |
| IEC Rated Voltage Un | 230VAC |
| IEC Maximum Continuous Voltage Uc | 300VAC |
| Thermal Isolation Protection | Yes |
|
IEC Degree of Protection
|
IP20 |
| Operating Temperature | -40°C - +80°C |
| HS Code | 85365080 |
| Certifications | EAC |
| Conformity | IEC/EN 61643-11 |
