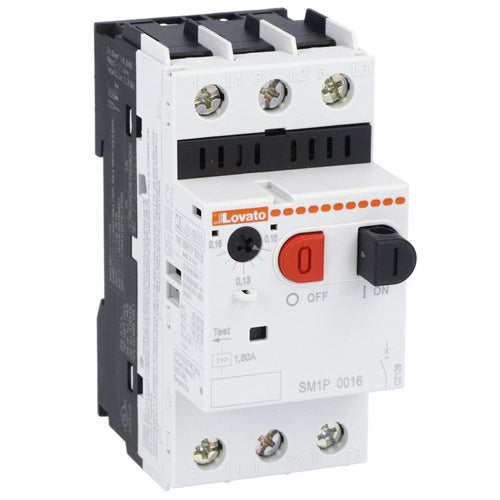

Lovato SM1PF0020, Motor Protection Circuit Breaker, Fuse Monitoring Function, Push Button Control, Short Circuit Breaking Capacity Icu 100kA at 400V, Rated Current 0.2A
Regular price
$412.10
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Intended specifically for monitoring the status of fuses: rated current: 0.2A; magnetic tripping: 1.2A
| Type of Product | Motor protection circuit breaker |
| Rated Current In [A] | 0.2 |
| Short-Circuit Current Breaking Capacity (Icu) at AC 400V [kA] | 100 |
| Type of Protection | Fuse monitoring function |
| Type of Control | Push button |
| Certified UL Type E | No |
| Rated Insulation Voltage Ui IEC/EN [V] | 690 |
| Rated Impulse Withstand Voltage Uimp [kV] | 6 |
| Rated Frequency [Hz] | 50/60 |
| Magnetic Tripping | 1.2A |
| Fixing | Screw / DIN rail 35mm |
| HS Code | 85362010 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL508 CSA C22.2 n° 14 |
