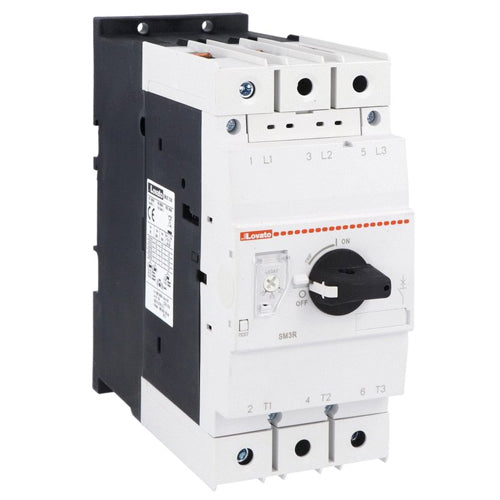

Lovato SM3R9000, Motor Protection Circuit Breaker, Magnetic and Thermal Protection, Rotary Knob Control, Short Circuit Breaking Capacity Icu 50kA at 400V, Thermal Trip Adjustment Range 70...90A
Regular price
$626.18
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Motor protection circuit breaker |
| Thermal Trip Adjustment Range [A] | 70...90 |
| Number of Poles | 3 |
| Rated Current In [A] | 90 |
| Short-Circuit Current Breaking Capacity (Icu) at AC 400V [kA] | 50 |
| Type of Protection | Magnetic and thermal |
| Type of Control | Rotary knob |
| Certified UL Type E | Yes |
| Rated Insulation Voltage Ui IEC/EN [V] | 1000 |
| Rated Impulse Withstand Voltage Uimp [kV] | 6 |
| Rated Frequency [Hz] | 50/60 |
| Tripping Class | 10A |
| Fixing | Screw / DIN rail 35mm |
| Power Terminal Protection According to IEC/EN 60529 | IP20 |
| Operating Temperature | -20°C - +70°C |
| HS Code | 85362090 |
| Certifications | cULus, EAC |
| Conformity | IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL508 CSA C22.2 n° 14 |
