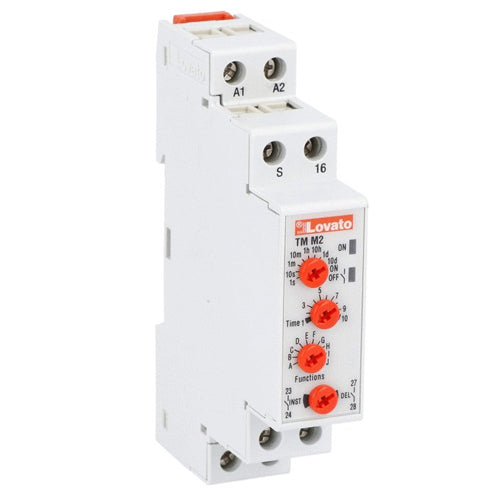

Lovato TMM2, Multifunction Time Relay, Multiscale, Multivoltage, 2 Relay Outputs, Modular Version, Rated Auxiliary Supply Voltage 12...240VAC/DC
Regular price
$178.46
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Time relays |
| Type of Installation | Modular DIN rail mounting |
| Functions | Multifunction |
| Programming mode | Potentiometers |
| Rated Auxiliary Supply Voltage Us | 12…240VAC/DC |
| Rated Frequency | 50/60 Hz |
| Time Setting Range | 0.1s...10days |
| Mounting | DIN rail 35 mm |
| Degree of Protection | IP40 on front, IP20 terminals |
| Dimensions (W x H x D) | 17.5 x 104.7 x 64.9mm |
| Operating Temperature | -20°C - +60°C |
| HS Code | 91070000 |
| Certifications | cULus, EAC |
| Compliance | IEC/EN 61812-1 UL508 CSA C22.2 n°14 |
