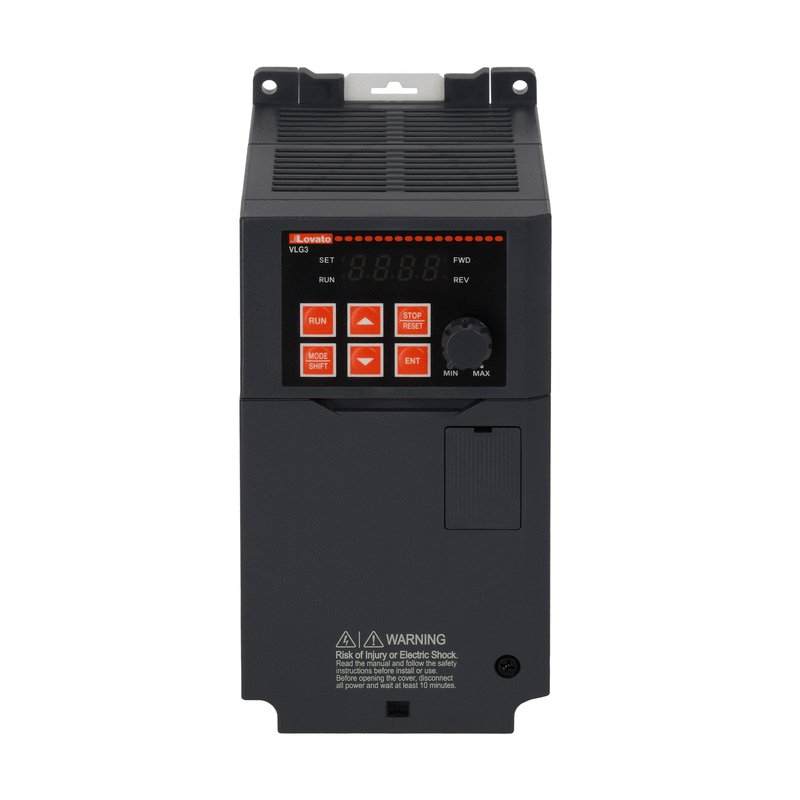

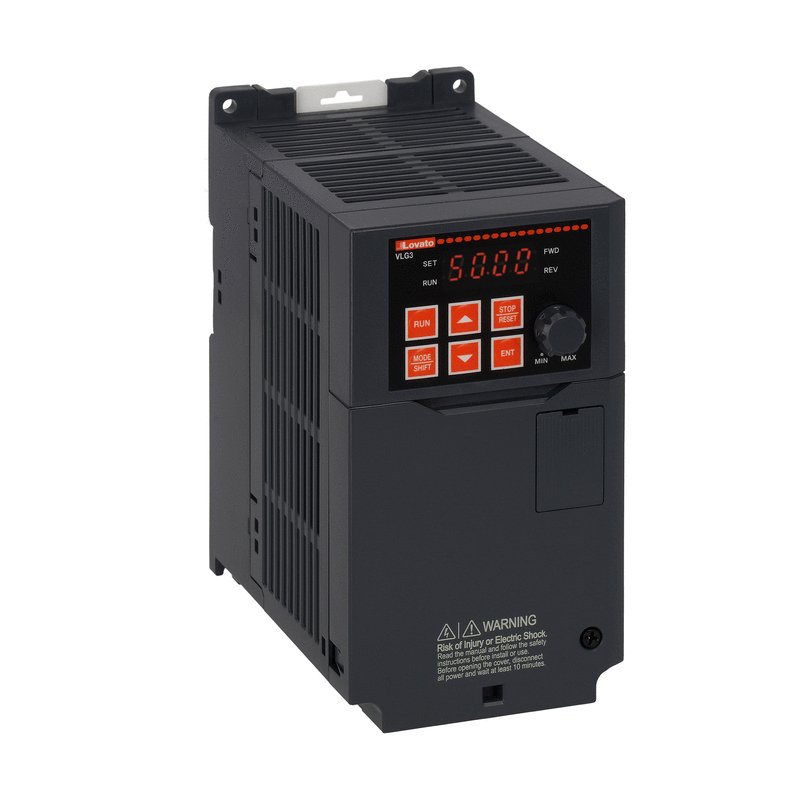

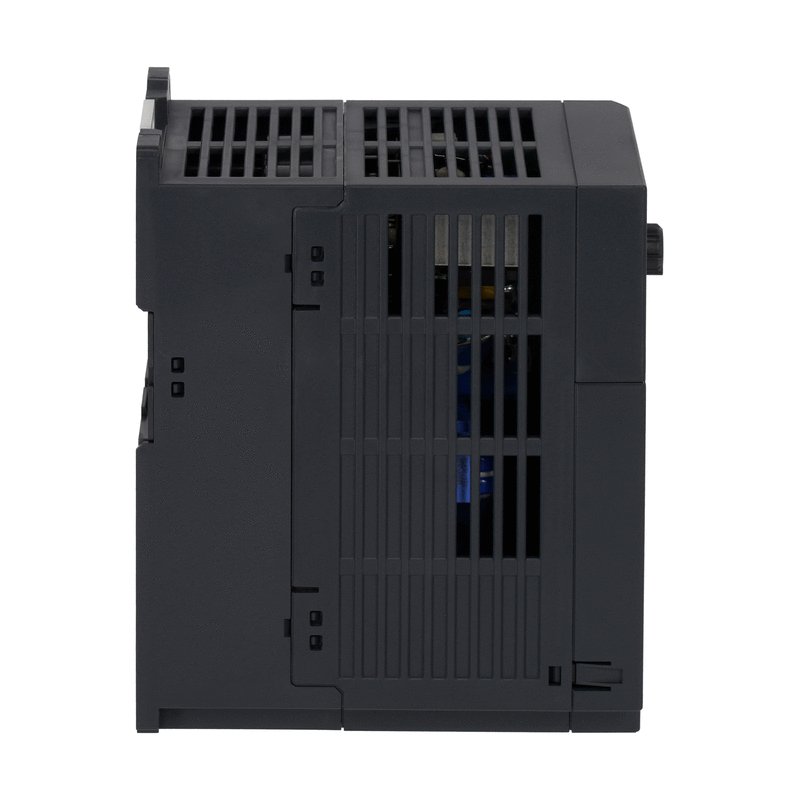

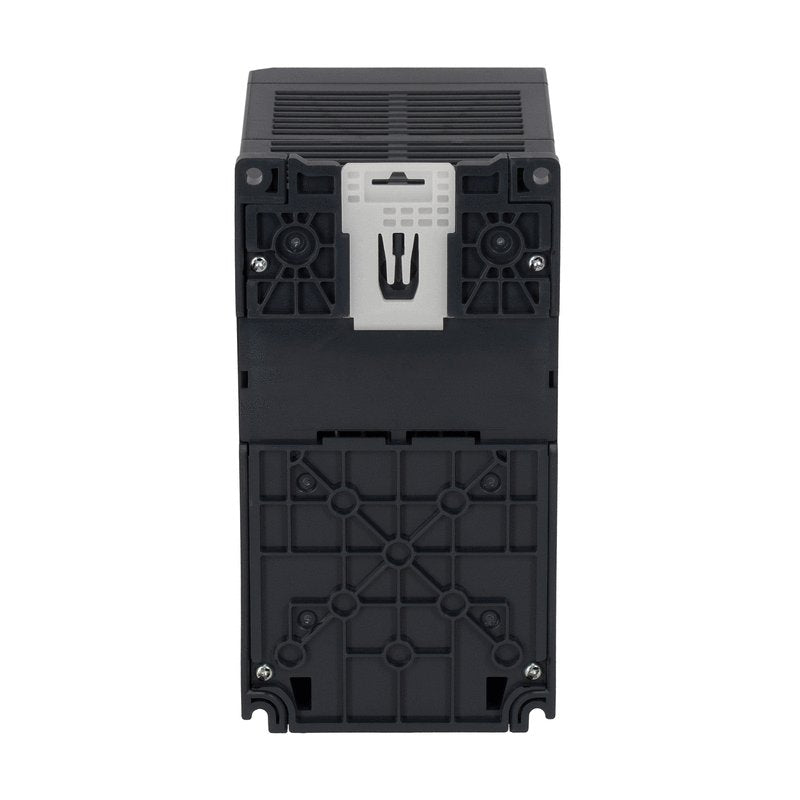

Lovato VLG30004A480, Variable Speed Drive, VLG3 Series (Three-Phase), Supply 380…480VAC 50/60Hz, Built-in EMC Suppressor, Cat. C3, 0.4kW
Regular price
$487.70
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Type of Product | Variable speed drives |
| Type of Input | Three-phase |
| Rated Supply Voltage | 380…480VAC 50/60Hz |
| Rated Output Current [A] | 1.3 |
| Rated Output Power [kW] | 0.4 |
| Rated Output Power [HP] | 0.5 |
| Communication port | RS485, Modbus-RTU |
| Housing | Monoblock housing |
| Rated Output Voltage | Three-phase 0…480VAC |
| EMC Filter | Built-in EMC suppressor cat. C3 |
| Operating Temperature | -10°C - +50°C |
| IP Degree of Protection | IP20 |
| Dimensions (W x H x D) | 86.2 x 164 x 139.7mm |
| HS Code | 85044095 |
| Certifications | cULus |
| Conformity | EN/BS 61800-5-1 EN/BS 61800-3 UL 61800-5-1 CSA C22.2 N° 274 |
