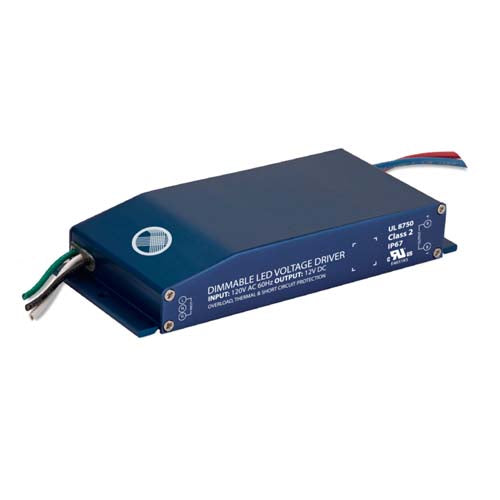

Magnitude E60R12DC, Constant Voltage Compact Dimmable LED Driver, 60W, 12VDC, Dry and Wet Location Rated, Input 120VAC, Class 2
Regular price
$161.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Magnitude’s E60R12DC dimmable voltage LED driver is class 2 rated and designed to operate with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch. The driver's low pro le aluminum case makes it the perfect choice for under cabinet lights, tape lights and various LED xtures installations. Our electrical speci cation includes Auto Reset, over current and short circuit protection. E ciency of 90% and higher allows the driver to operate at low temperatures.
| Stock Code | E60R12DC |
|
Max Load
|
60W |
| Input Voltage | 120VAC, 60Hz |
|
Eciency
|
> 90%
|
|
Input Current
|
0.61 A
|
| Output Voltage |
12V DC
|
| Output Current |
5.26 A
|
| Power Factor | 0.95 |
|
Dimmable
|
TRIAC |
| Operating Temp. |
-20°C - 70°C (-4°F - 158°F)
|
|
Short circuit protection
|
Yes
|
|
Overcurrent
|
Yes
|
|
Over temperature
|
Yes
|
|
Open circuit protection
|
Yes
|
| Dimensions |
4.92” x 1.97” x 0.77”
|
| IP Rating |
IP67
|
| UL Listed | UL 8750, class 2, FCC |
