Magnitude M200L24DC, Constant Voltage Magnetic Dimmable LED Driver, 200W, 24VDC, Dry and Wet Location Rated, Input 120VAC
Regular price
$271.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

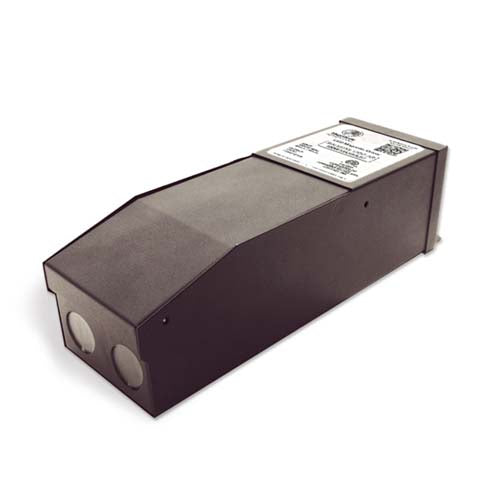

Magnitude’s M200L24DC is the most compact LED driver on the market with a magnetic transformer core. It is equipped with two push-to-reset circuit breakers on the input and output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
| Stock Code | M200L24DC |
|
Max Load
|
200W |
| Input Voltage | 120VAC, 60Hz |
|
Eciency
|
87%
|
|
Input Current
|
2.51 A
|
| Output Voltage |
24 VDC
|
| Output Current |
10.9 A
|
| Power Factor |
0.93
|
| Dimmable |
TRIAC
|
|
Coil Former
|
Double Section Bobbin
|
|
Circuit Breaker
|
secondary manual push-to-reset
|
| Dimensions |
9.8 in. x 3 in. x 3 in.
|
|
Enclosure
|
Nema 3R(Outdoor Use)
|
| UL Listed | ETL, CSA |
