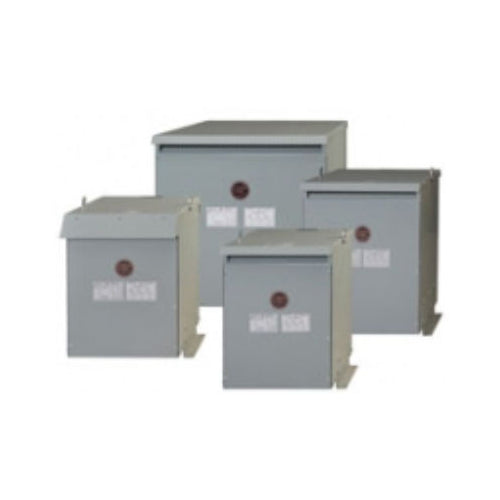

MARCUS AMTH150C1, 150KVA, Commercial Isolation Type, 3 Phase, Primary 416D, Secondary 208Y/120V, Aluminium Winding, Type 3R Enclosure
Regular price
$11,195.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Commercial Premium Efficiency Distribution Transformers. Spec No. AMTH150C1. Primary 416V Delta, Secondary 208V Wye / 120V, 150kVA, 60Hz, 3 Phase, Step Down Isolation Type, NEMA 3R Enclosure. Aluminium Conductor. Made in Canada.
| Length (in) | 30.5 (Depth) |
| Width (in) | 35.5 |
| Height (in) | 39.3 |
| Winding Material | Aluminium / Al |
| Phase | Three Phase |
| First Voltage | 416V Delta |
| Secondary Voltage | 208V Wye / 120V |
| Wattage (w) | 150KVA |
| Efficiency (typical) | 98.83% As per NRCAN 2019 and DOE 2016 |
| IP Rating | Type 3R Enclosure |
| Material | Aluminium Windings |
| Type | Isolation Type |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| Weight (lb.) | 1017 Lbs / 462 Kgs |
| UL Listed | CSA Certified |
| Warranty | 1-Year |
