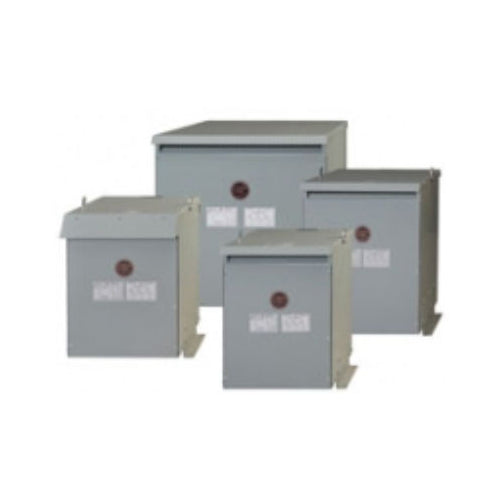

MARCUS AMTH45A6, Commercial Premium Efficiency Distribution Transformer, 45KVA, 3 Phase, Primary 600D, Secondary 380Y/220V, Aluminium Winding, Type 3R Enclosure
Regular price
$3,999.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Family | Commercial Transformer 3-Phase Isolating |
| Phase | Three Phase |
| First Voltage | 600V Delta |
| Secondary Voltage | 380Y / 220V Wye |
| Wattage (w) | 45KVA |
| Efficiency (typical) | 98.40% As per NRCAN 2019 and DOE 2016 |
| IP Rating | Type 3R Enclosure |
| Material | Aluminum Windings |
| Type | Isolation Type |
| Length (in) | 20-1/2 (Depth) |
| Width (in) | 22-5/8 |
| Height (in) | 29 |
| Winding Material | Aluminium / Al |
| Start Temp. (Min) | Temperature Rises: 150°C |
| Start Temp. (Max) | Isulation Class: 220°C |
| UL Listed | CSA Listed |
| Warranty | 1 Year Limited Warranty |
