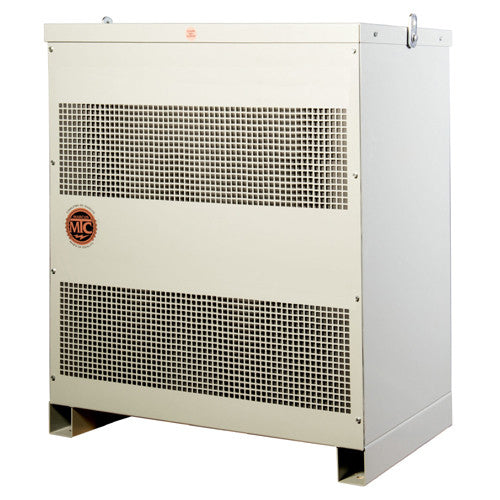

MARCUS MTH400A4, 400KVA, High Efficiency Isolation Type, 3 Phase, Primary 600V Delta, Secondary 480Y/277V Wye, Copper, NEMA 1 Enclosure
Regular price
$33,000.00
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
400KVA, Spec No. MTH400A4. Primary 600V Delta, Secondary 480V Wye / 277V, 60Hz, 3 Phase, 3 Coils, Isolation Type Transformer, NEMA 1 Enclosure. Copper Conductor. Made in Canada.
| Length (in) | 30-1/4 (Depth) |
| Width (in) | 34-1/2 |
| Height (in) | 51-5/8 |
| Winding Material | Copper / Cu |
| Phase | Three Phase |
| First Voltage | 600Vac Delta |
| Secondary Voltage | 480V/277V Wye |
| Wattage (w) | 400kVA |
| IP Rating | NEMA 1 |
| Weight | 2760 Lbs / 1252 Kgs |
| UL Listed | CSA, UL Listed |
