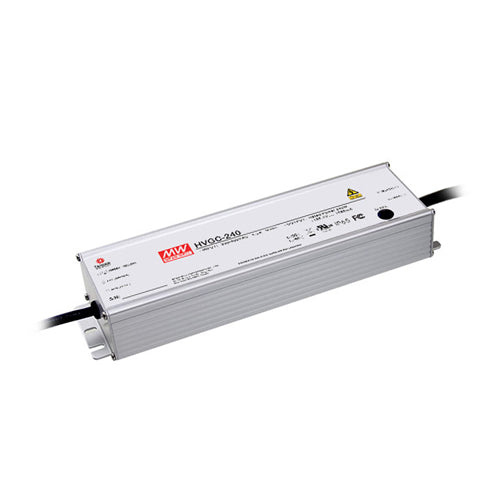

Mean Well HVGC-240-1050B, 240W Constant Current Mode LED Driver, HVGC-240 Series, 180-528VAC Input, 1050mA, 114.3- 228.6V Output, 3 in 1 Dimming, IP67
Regular price
$194.15
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HVGC_240 series is a 240W LED AC/DC LED power suppIy featuring the constant current mode and high voItage output. HVGC_240 operates from 180~528VAC and offers mode Is with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 93 .5%, with the fanIess design, the entire series is abIe to operate for _40℃ ~ +90℃ case temperature under free air convection . The design of meta I housing and lp67/lp65 ingress protection IeveI a IIows this series to fit both indoor and outdoor appIications.HVGC_240 is equipped with various function options, such as dimming method o Iogies, so as to provide the optimaI design fIexibiIity for LED Iighting system .
| Part No | HVGC-240-1050B |
| Number Outputs | 1 |
| Power Output (W) | 240 |
| Length | 9.06" (230.2mm) |
| Width | 2.68" (68.0mm) |
| Height | 1.53 (38.8 mm) |
| Input Voltage | 180-528VAC |
| Output |
Voltage: 114.3 ~ 228.6V
Current: 1.05A
|
| Type | Constant Current |
| Dimming | Analog, PWM |
| Features | OTP, OVP, SCP |
| Ratings |
IP67
|
| Operating Temperature | -40°C ~ 90°C |
|
Mounting Type
|
Chassis Mount |
| UL Listed | cURus |
