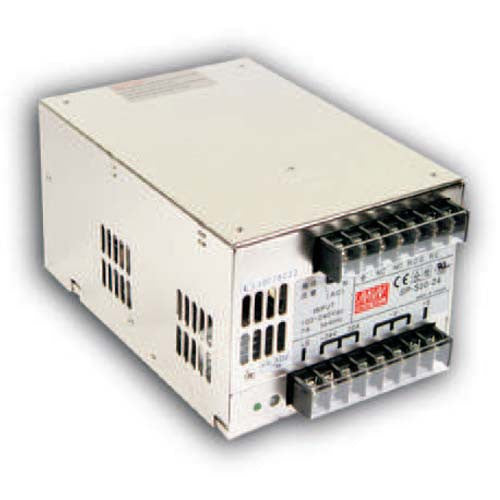

Mean Well SP-500-12, Output 12 Volt, 40Amp, 500W Single Output with PFC Function, Universal AC Input

In stock
SKU: SP-500-12
$184.00
Rated voltage
Power

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Output Voltage 12Vdc, Output Current 0 - 40Amp, Output Power 480Watt Max., Universal Input Voltage 88 - 264VAC, 124 - 370VDC, Constant Voltage LED Driver, Built-in active PFC fuction, PF>0.95, Enclosed type switching power supply with cooling fan
Stock Code SP-500-12
Family 500W Single Output with PFC Function - SP-500 Series
Length 6.69 in
Width 4.72 in
Height  3.66 in
Voltage  88 ~ 264VAC 124 ~ 370VDC
Input Current 7A/115VAC 3.5A/230VAC
Bulb Type LED
Output Voltage 12VDC
Power Factor >0.95
THD <10%
UL Listed cRUus
Weight  4.2 lb.
Warranty 3 Years
Notes SP-500-12 is still available. However, Mean Well has plans to discontinue SP-500-12. The suggested replacement is Mean Well PSP-600
