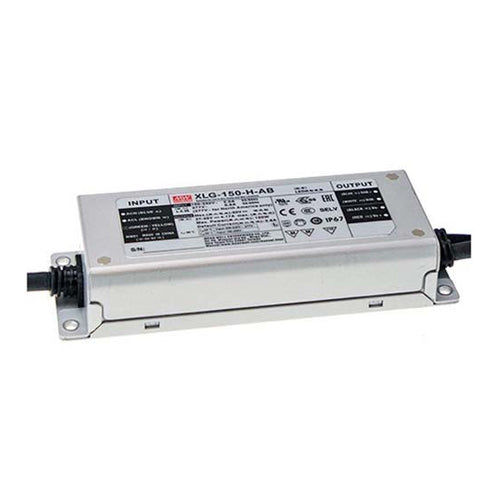

Mean Well XLG-150-H-AB, Output 150W 56Vdc at 4.17A, IP67, 0-10V Dimming, 100-277Vac Input
Regular price
$78.25
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
150W Constant Power Mode LED Driver, Input 120-277Vac, Output 27-56Vdc, 2.68-4.17A CC Mode, Max. 60Vdc Output, 0-10Vdc, 10V PWM Signal and Resistance Dimming. IP67 Suitable for Wet Location.
| Stock Code | XLG-150-H-AB |
| Family | 150W Constant Power Mode LED Driver |
| Ballast Type | Electronic LED Driver |
| Dimmable | Yes |

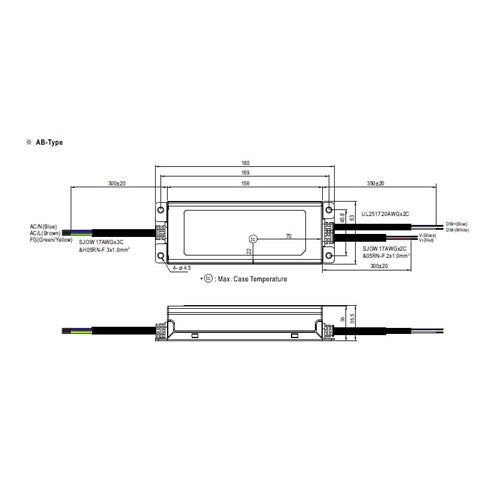

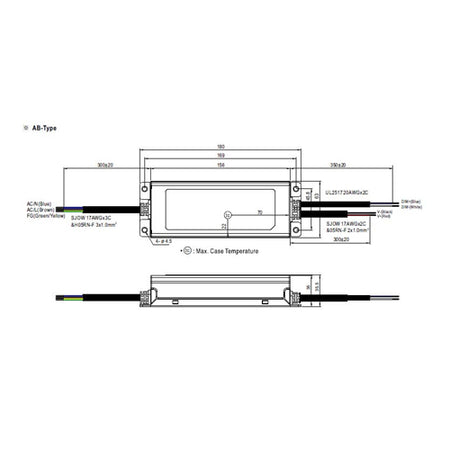

| Dimensions |
Length 180mm Width 63mm Height 35.5mm |
| Input Voltage | 100-277Vac, 50/60Hz |
| Output |
Voltage: 27-56V
Current: 4.2A
Power: 150W
|
| Bulb Type | LED |
| Housing | Metal Housing |
| IP Rating | IP67 |
| Operates | Intended for use in LED fixtures including Indoor, Downlight fixtures. |
| UL Listed | cRUus, SELV |
| Weight | 1.76 lbs |
