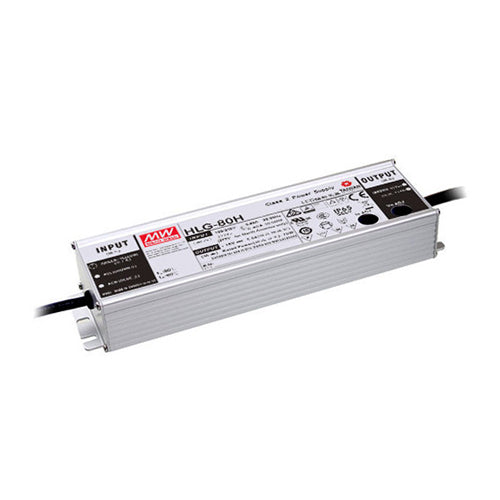

Meanwell HLG-80H-24B, Output 81.6W 14.4-24VDC 2.04-3.4A Class 2 LED Driver, 3 in 1 Dimming Function, Input 120-277VAC, IP67/IP65
Regular price
$97.63
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
| Stock Code | HLG-80H-24B |
| Family | Constant Voltage + Constant Current LED Driver |
| Part No | HLG Series High-Performance LED Drivers |
| Dimmable | Yes |
| Length | 195.6 mm |
| Width | 61.5 mm |
| Height | 38.8 mm |
| Input Voltage | 120 - 277 Vac |
| Input Current | 0.85A@115Vac, 0.425A@230Vac, 0.4A@277Vac |
| Bulb Type | LED |
| Output Voltage | 14.4-24V |
| Output Current | 2.04 - 3.4A |
| Output Power | 81.6W |
| Power Factor | >0.95 |
| Start Temperature | ‐40°C (-40°F)~80°C (170°F) |
| THD | <20% |
| Weight | 1.85 lb. |
| UL Listed | cULus, RoHS |
| Warranty | 5 Years |
| Cross Refefence | HLG-80H-24B-ND 1866-2623 5896-HLG-80H-24B |
