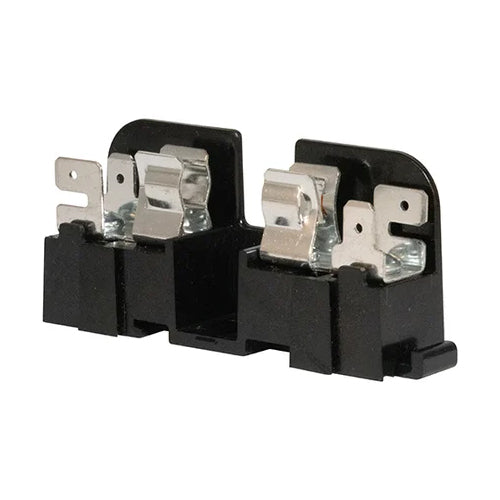

Mersen 40310G, Class G Fuse Block, Adder Poles, 480VAC/DC, 30A, Screw with Reinforced Clip
Regular price
$20.86
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
| Rated voltage | 480 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 30 A |
| Fuse Class | Class G |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Number of Poles | Adder |
| Wiring range | Cu #10-14 |
| Fuse Installation Method | Clip-in |
| Torque Rating | 20 lb-in |
| Installation Mounting | Screw Mount or DIN Rail |
| Connector Type | Screw with Double Quick Connects at Both Ends |
| Dimensions | 3.05'' (L) x 0.77'' (W) x 1.45'' (H) |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Safety Certifications | ROHS,UL, CSA |
| Product Weight | 0.1 lb |
