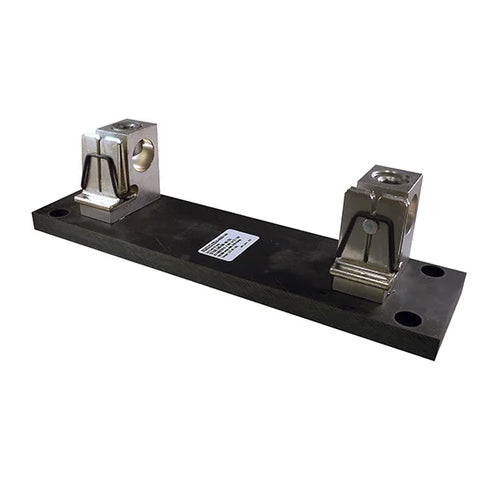

Mersen 64001R, Class R Fuse Block, 1-Pole, 600VAC/DC, 400A, Box Side-Clip Connector
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
| Rated voltage | 600 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400 A |
| Fuse Class | Class R |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Number of Poles | 1-Pole |
| Fuse Installation Method | Clip-in |
| Torque Rating | 375 lb-in |
| Installation Mounting | Direct Screw Mount |
| Dimensions | 14.5'' (L) x 3.5'' (W) x 3.62'' (H) |
| Body/Insulating Material | Phenolic |
| Safety Certifications | ROHS,UL, CSA |
| Product Weight | 5.63 lb |
