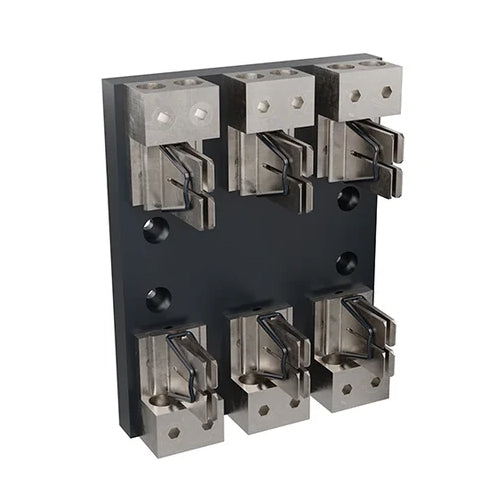

Mersen 64033J, Class J Fuse Block, 600VAC/DC, 3-Pole, 400A, Box In-Line Clip
Regular price
$1,159.30
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen’s connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tinplated copper designed specifically for 200-600A bladed Class J fuses.
| Rated voltage | 600 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 400 A |
| Fuse Class | Class J |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Number of Poles | 3-Pole |
| Fuse Installation Method | Clip-in |
| Torque Rating | 275 lb-in |
| Installation Mounting | Direct Screw Mount |
| Dimensions | 10'' (L) x 10.5'' (W) x 3.62'' (H) |
| Body/Insulating Material | Phenolic |
| Safety Certifications | ROHS,UL, CSA |
| Product Weight | 16.45 lb |
