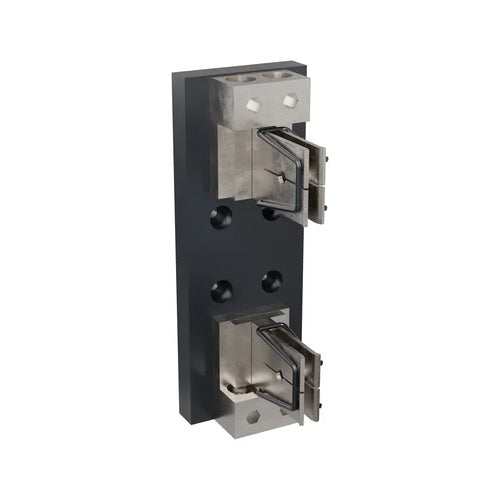

Mersen 6661J, Class J Fuse Block, 600VAC/DC, 1-Pole, 600A, Copper Box In-Line Clip
Regular price
$1,783.81
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen’s connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. All fuse clips are made of high conductivity tinplated copper designed specifically for 200-600A bladed Class J fuses.
| Rated voltage | 600 VAC/DC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 600 A |
| Fuse Class | Class J |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Number of Poles | 1-Pole |
| Fuse Installation Method | Clip-in |
| Torque Rating | 375 lb-in |
| Installation Mounting | Direct Screw Mount |
| Dimensions | 11'' (L) x 4'' (W) x 4.74'' (H) |
| Body/Insulating Material | Phenolic |
| Safety Certifications | ROHS,UL, CSA |
| Product Weight | 8.76 lb |
