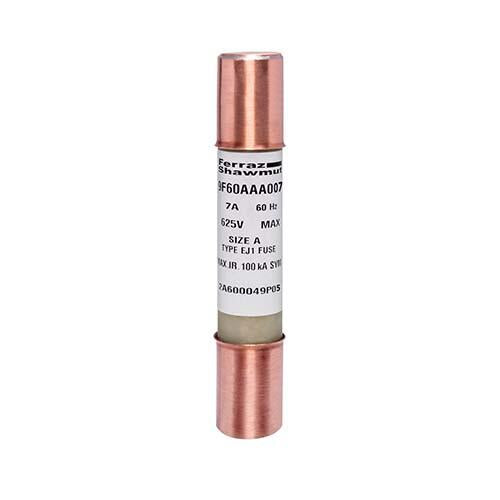

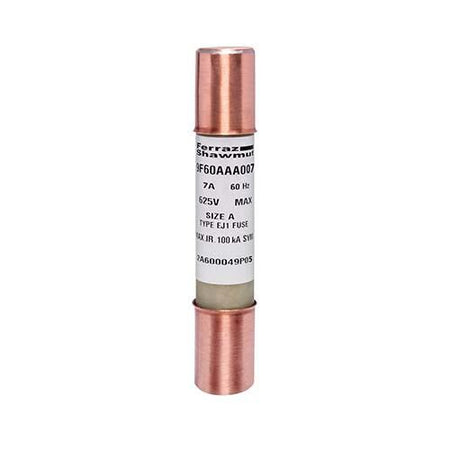

Mersen 9F60AAA007, Medium Voltage Potential Transformer Fuse, 625VAC, 7A, Ferrule Type
Regular price
$134.40
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage Potential Transformer Fuse 625VAC 7A Ferrule Series: AAA Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.
| Rated Voltage | 625VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 7A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| Connection/Terminal Material | Copper |
| Product Diameter | 0.81'' |
| Product Length | 4.63'' |
| Connection/Terminal Type | Ferrule |
| Body/Insulating Material | Epoxy |
| Product Weight | 0.25 lb |
