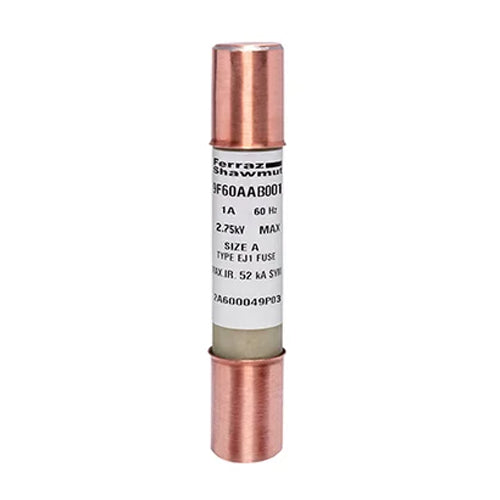

Mersen 9F60AAB001, Medium Voltage Potential Transformer Fuse, 2750VAC, 1A, Ferrule Type, 4.25" (108 mm) Clip Centers

In stock
SKU: 9F60AAB001
$175.51
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Medium Voltage Potential Transformer Fuse 2750VAC 1A Ferrule Series: AAB Amp-Trap®

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 2750VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 1A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 52 kA
Connection/Terminal Material Copper
Product Diameter 0.81''
Product Length 4.63''
Connection/Terminal Type Ferrule
Body/Insulating Material Epoxy
Product Weight 0.28 lb
