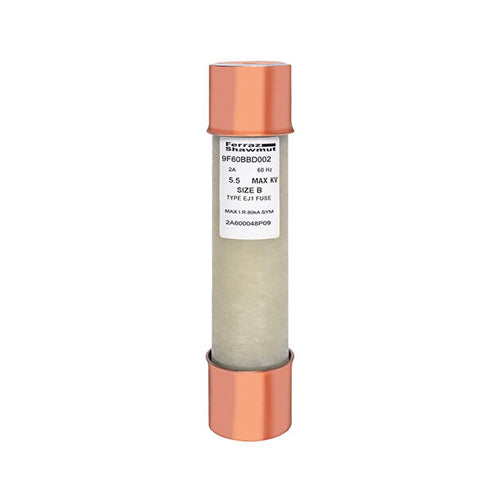

Mersen 9F60BBD002, Medium Voltage Potential Transformer Fuse, 5500VAC, 2A, Ferrule Type, 6" (152 mm) Clip Centers
Regular price
$434.30
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage Potential Transformer Fuse 5500VAC 2A Ferrule Series: BBD Visual Indicator Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 10A
| Rated Voltage | 5500VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 63 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Copper |
| Product Diameter | 1.56'' |
| Product Length | 7.38'' |
| Connection/Terminal Type | Ferrule |
| Body/Insulating Material | Epoxy |
| Product Weight | 1.5 lb |
