Home » Mersen 9F60BBN905, Medium Voltage Potential Transformer Fuse, 5500VAC, 0.5A, Ferrule Type, 6" (152 mm) Clip Centers
Mersen

Mersen 9F60BBN905, Medium Voltage Potential Transformer Fuse, 5500VAC, 0.5A, Ferrule Type, 6" (152 mm) Clip Centers

In stock
SKU: 9F60BBN905
$393.84
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

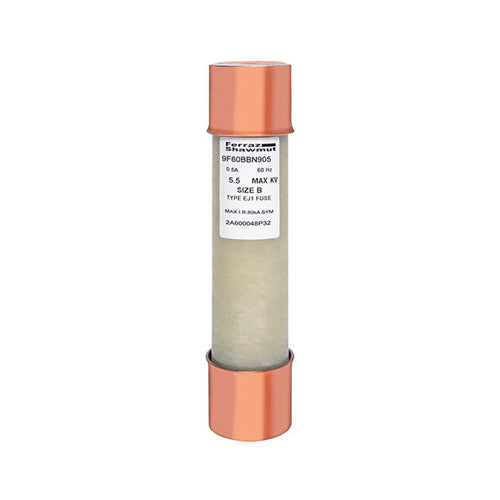

Medium Voltage Potential Transformer Fuse 5500VAC 0.5A Ferrule Series: BBN Amp-Trap®

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 5500VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 0.5A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 63 kA
Connection/Terminal Material Copper
Product Diameter 1.56''
Product Length 7.38''
Connection/Terminal Type Ferrule
Body/Insulating Material Epoxy
Product Weight 1.5 lb
