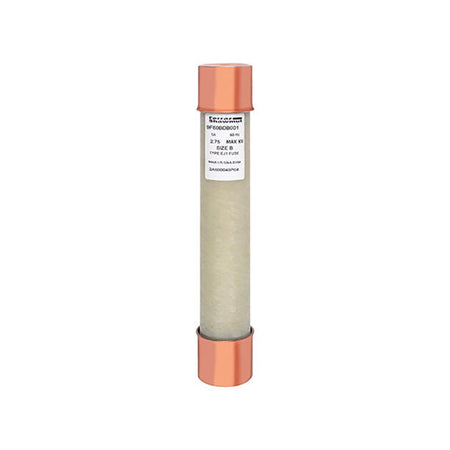

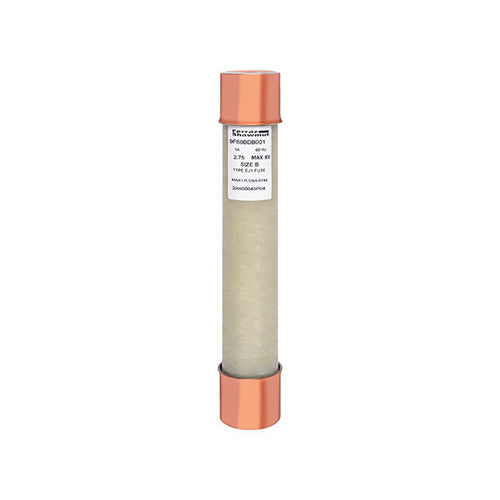

Mersen 9F60BDB001, Medium Voltage Potential Transformer Fuse, 2750VAC, 1A, Ferrule Type, 8.12" (206 mm) Clip Centers

In stock
SKU: 9F60BDB001
$408.57
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Medium Voltage Potential Transformer Fuse 2750VAC 1A Ferrule Series: BDB Visual Indicator Amp-Trap®

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 2750VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 1A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 52 kA
Indication System Yes
Indication System Type Visual Indicator
Connection/Terminal Material Copper
Connection/Terminal Type Ferrule
Product Diameter 1.56''
Product Length 9.5''
Body/Insulating Material Epoxy
Product Weight 1.4 lb
