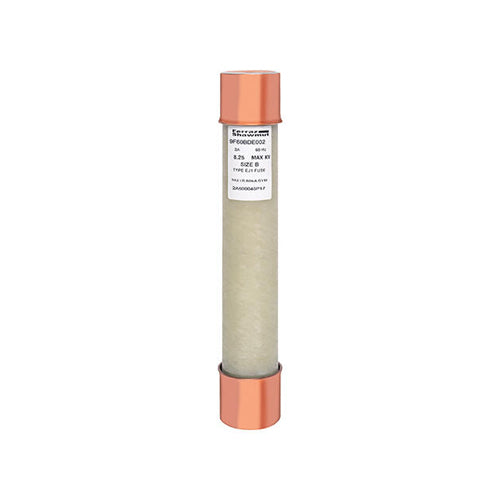

Mersen 9F60BDE002, Medium Voltage Potential Transformer Fuse, 8250VAC, 2A, Ferrule Type, with Visual Indicator
Regular price
$423.27
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage Potential Transformer Fuse 8250VAC 2A Ferrule Series: BDE Visual Indicator Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.
| Rated Voltage | 8250VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 2A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.56'' |
| Product Length | 9.5'' |
| Body/Insulating Material | Epoxy |
| Product Weight | 1.7 lb |
