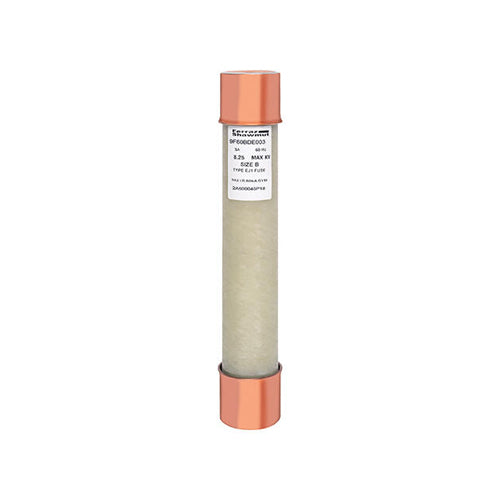

Mersen 9F60BDE003, Medium Voltage Potential Transformer Fuse, 8250VAC, 3A, Ferrule Type, with Visual Indicator

In stock
SKU: 9F60BDE003
$423.27
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Medium Voltage Potential Transformer Fuse 8250VAC 3A Ferrule Series: BDE Visual Indicator Amp-Trap®

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 8250VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 3A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 50 kA
Indication System Yes
Indication System Type Visual Indicator
Connection/Terminal Material Copper
Connection/Terminal Type Ferrule
Product Diameter 1.56''
Product Length 9.5''
Body/Insulating Material Epoxy
Product Weight 1.7 lb
