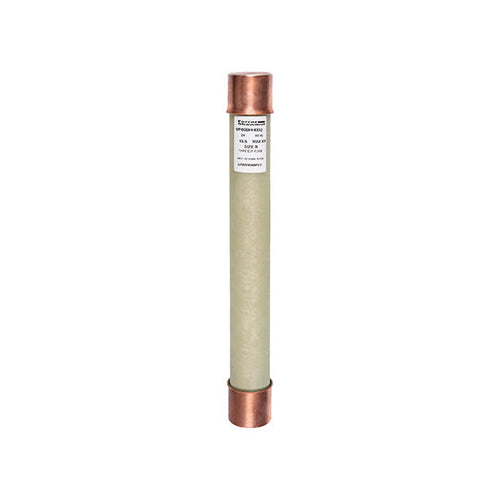

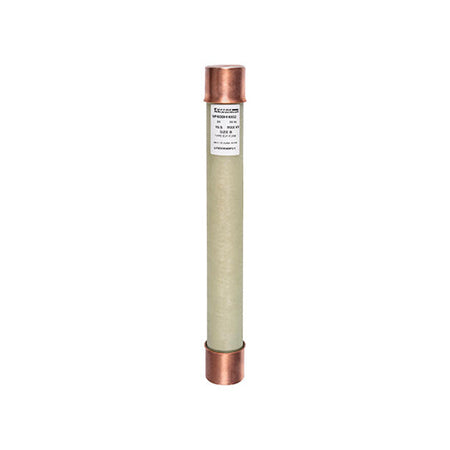

Mersen 9F60BHH002, Medium Voltage Potential Transformer Fuse, 15500VAC, 2A, Ferrule Type, with Visual Indicator

In stock
SKU: 9F60BHH002
$614.65
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Medium Voltage Potential Transformer Fuse 15500VAC 2A Ferrule Series: BHH Visual Indicator Amp-Trap®

Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.

 Rated Voltage 15500VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 2A
Mounting Clip
AC Max I.R./Breaking Capacity: I1 120 kA
Indication System Yes
Indication System Type Visual Indicator
Connection/Terminal Material Copper
Connection/Terminal Type Ferrule
Product Diameter 1.56''
Product Length 12.88''
Body/Insulating Material Epoxy
Product Weight 1.8 lb
