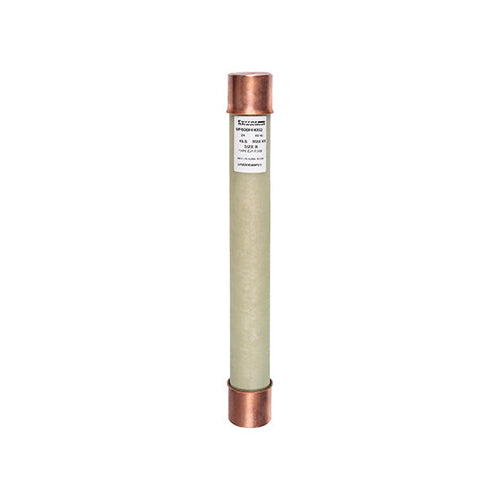

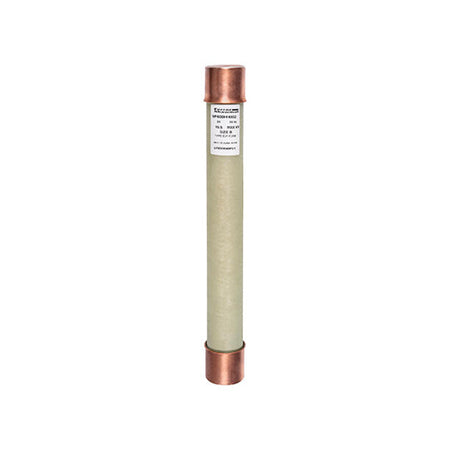

Mersen 9F60BHH003, Medium Voltage Potential Transformer Fuse, 15500VAC, 3A, Ferrule Type, with Visual Indicator
Regular price
$614.65
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage Potential Transformer Fuse 15500VAC 3A Ferrule Series: BHH Visual Indicator Amp-Trap®
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. They are small dimension ferrule type fuses and mount in standard clips.
| Rated Voltage | 15500VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 3A |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 120 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Copper |
| Connection/Terminal Type | Ferrule |
| Product Diameter | 1.56'' |
| Product Length | 12.88'' |
| Body/Insulating Material | Epoxy |
| Product Weight | 1.8 lb |
