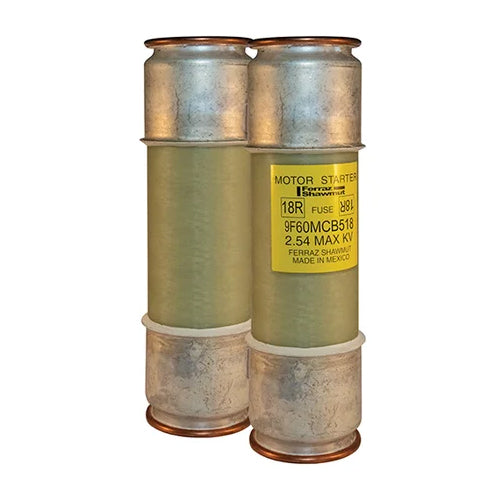

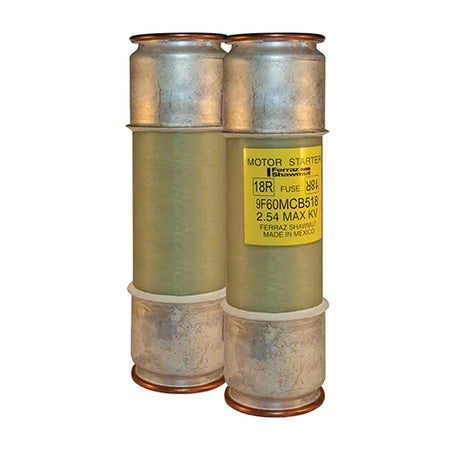

Mersen 9F60MCB518, Back-Up R-Rated Medium Voltage Fuse, Ferrule Mount, Motor Protection, 2400VAC, 18R, 2 Barrels, Indicating
Regular price
$4,504.63
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips
| Rated Voltage | 2400VAC |
| Frequency (Hz) | 50/60 Hz |
| Mounting | Clip |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Design Details | 18R |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Product Length | 10.88'' |
| Product Diameter | 3'' |
| Connection/Terminal Type | Ferrule |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Epoxy |
| Product Weight | 12 lb |
