Home » Mersen A072B2D0R0-32R, Back-Up R-Rated Medium Voltage Fuse, Bolt-On Mount, Motor Protection, 7200VAC, 32R, 2 Barrels
Mersen

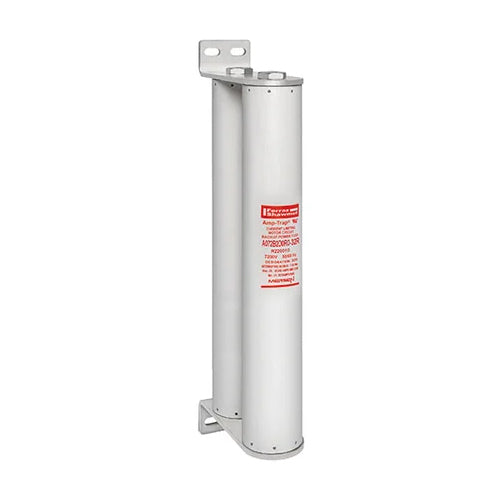

Mersen A072B2D0R0-32R, Back-Up R-Rated Medium Voltage Fuse, Bolt-On Mount, Motor Protection, 7200VAC, 32R, 2 Barrels

In stock
SKU: A072B2D0R0-32R
$11,453.09
Rated voltage
Size

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Back-Up R-Rated Medium Voltage Fuse 7200VAC 32R Mounting: Bolted Style: D0R0 Visual Indicator Amp-Trap®

 Rated Voltage 7200VAC
Frequency (Hz) 50/60 Hz
Speed/Characteristic R-Rated
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 65 kA
Design Details 32R
Indication System Yes
Indication System Type Visual Indicator
Connection/Terminal Material Silver-Plated Brass
Connection/Terminal Type Bolted
Product Diameter 3''
Product Length 21.5''
Product Height 7.63''
Body/Insulating Material GMG
Product Weight 26 lb
