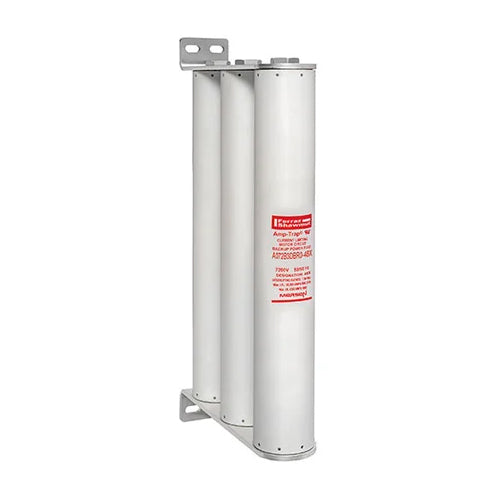

Mersen A072B3DBR0-57X, Back-Up R-Rated Medium Voltage Fuse, Bolt-On Mount, Motor Protection, 7200VAC, 57X, 3 Barrels
Regular price
$17,190.10
⚠️ IMPORT NOTICE
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
FOR ALL ORDERS OUTSIDE CANADA, CUSTOMERS ARE RESPONSIBLE FOR ANY IMPORT DUTIES, TARIFFS, TAXES, AND CUSTOMS FEES THAT MAY APPLY TO THEIR ORDERS.
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses are single, double, triple or quadruple barrels 3 inches diameter with end mounts designed for bolting directly to equipment bus or terminal pads
| Rated Voltage | 7200VAC |
| Frequency (Hz) | 50/60 Hz |
| Speed/Characteristic | R-Rated |
| Mounting | Bolted |
| AC Max I.R./Breaking Capacity: I1 | 65 kA |
| Design Details | 57X |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Brass |
| Connection/Terminal Type | Bolted |
| Product Width | 3'' |
| Product Length | 21.5'' |
| Product Height | 11.63'' |
| Body/Insulating Material | GMG |
| Product Weight | 31 lb |
