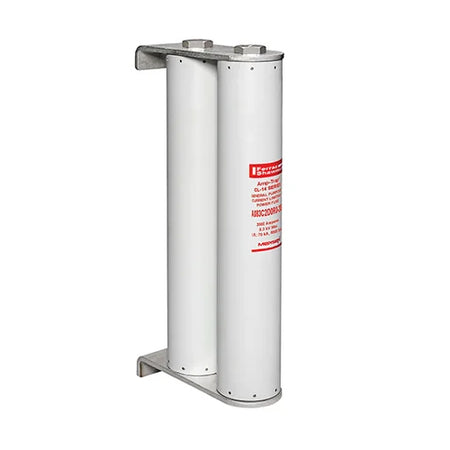

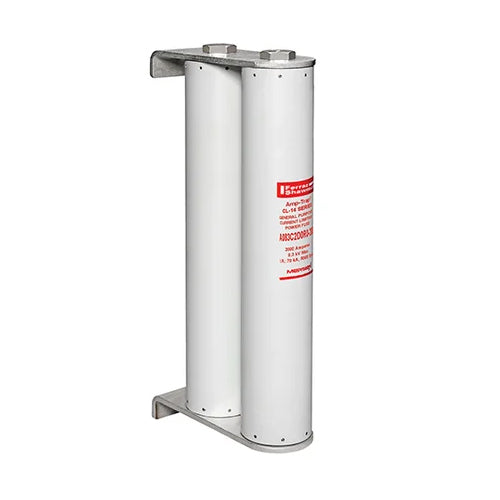

Mersen A083C2D0R0-200E, Medium Voltage E-Rated Clip-Lock Mount Transformer Fuse, 8250VAC, 200A, 2 Barrels
Regular price
$4,424.80
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Medium Voltage E-Rated Fuse 8250VAC 200A Clip-lock Series: D0R0 Visual Indicator Amp-Trap®
| Rated Voltage | 8250VAC |
| Frequency (Hz) | 50/60 Hz |
| Ampere Rating | 200A |
| Speed/Characteristic | E-Rated |
| Mounting | Clip-lock |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Connection/Terminal Material | Silver-Plated Copper |
| Connection/Terminal Type | Blade |
| Product Diameter | 3'' |
| Product Length | 16.95'' |
| Product Height | 7.94'' |
| Body/Insulating Material | GMG |
| Product Weight | 22 lb |
