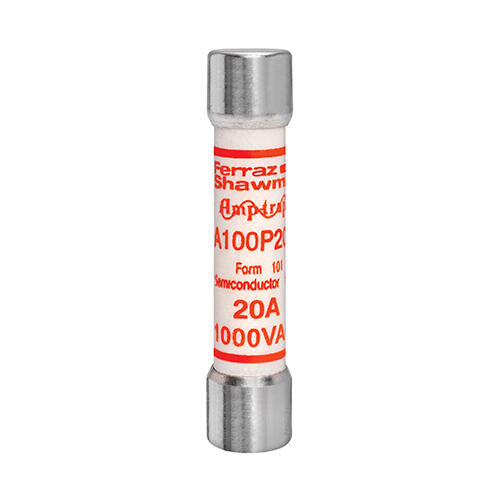

Mersen A100P20-1, Round Body High-Speed Fuse, 1000VAC, 20A, Ferrule

In stock
SKU: A100P20-1
$98.11
Rated voltage
Ampere rating

Use this text to encourage communication or promote sharing on social networks.

You can also add links

A100P Amp-Trap® Form 101 high speed fuses are rated 1000V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 amperes, a wide range of high voltage applications can be served.

Rated Voltage 1000VAC
Frequency (Hz) 50/60 Hz
Ampere Rating 20A
ROHS Compliant Yes
Speed/Characteristic High Speed
Mounting Clip
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Tin-Plated Brass
Connection/Terminal Type Ferrule
Product Diameter 0.56''
Product Length 2.63''
Body/Insulating Material GMG
Product Weight 0.06 lb
